Spare Parts For Rotary Printing Machine

Spare Parts For Rotary Printing Machine

We are leading manufacturer, exporter and supplier of Spare Parts for Rotary Printing Machine international standard from last 25 years from India. Spares for Rotary Screen Printing Machine Like Printing Unit Lifting Bevel Box, Hand Wheel, Screen drive Gear Shaft, Screen Drive gear, Fork Assembly, Muff Coupling, Eccentric Type, Bearing, Rollers MS etc.

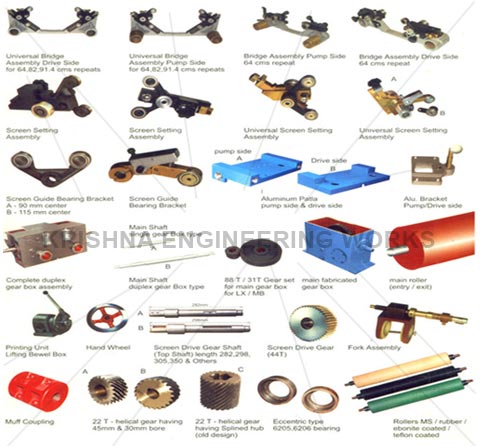

1. Universal (Multi Repeat) Bridge Assembly Drive & Pump Side for 640,820,914
2. Single Repeat Bridge Assembly Drive & Pump Side for 640,820,914
3. Universal Screen Setting Assembly                           (RH / LH ).
4. Screen Setting Assembly                                     (RH / LH ).
5. Screen Guide Bearing Bracket.
6. Screen Guide Bearing & Pin.
7. Alluminium Patala.           Pump Side & Drive Side
8. Complete Duplex Gear Box Assembly
9. Gear set
10. Main Roller.       Entry & Exit
11. Printing Unit Lifting Bevel Box
12. Hand Wheel
13. Screen drive Gear Shaft
14. Screen Drive gear
15. Fork Assembly
16. Muff Coupling
17. Eccentric Type 6205,6206 Bearing.
18. Rollers MS, Rubber, Ebonite Coated, Teflon Coated

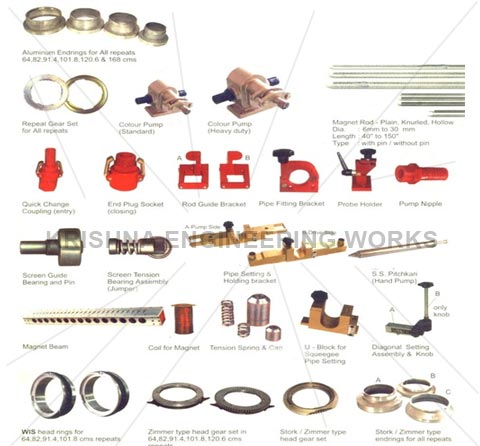

Rotary Spares

1. Rotary Screen Endring. ( 640 mm, 820mm, 914mm Repeats )
2. Repeat Gear set. (Gear Ring). ( 640 mm, 820 mm, 914 mm repeats )
3. G.M. Color Gear Pump.   ( Light & Heavy Duty ).
4. Magnet Rod All Types.     ( Plain, Knurled, Hollow )
5. Quick Change Coupling.   ( Color Coupling Open Side )
6. End Plug Shocke      (Color Coupling Close Side )
7. Rod Guide Bracket     (Square Bracket ) ( LH. & RH. )
8. Pipe Fitting Bracket.      ( Round Bracket )
9. Probe Holder.
10. Pump Nipple.
11. Screen Guide Bearing & Pin.
12. Screen Tension Bearing Assembly.     ( Jumper Bearing ).
13. Pipe Setting & Holding Assembly.    ( LH / RH )
14. S.S. Color Pitchkari.
15. Magnet Beam Laxmi Type.
16. Magnet Beam Coil.
17. Tension Spring & Cap.
18. U-Block for Squeegee Pipe Setting.
19. Diagonal Setting Assembly & Knob.

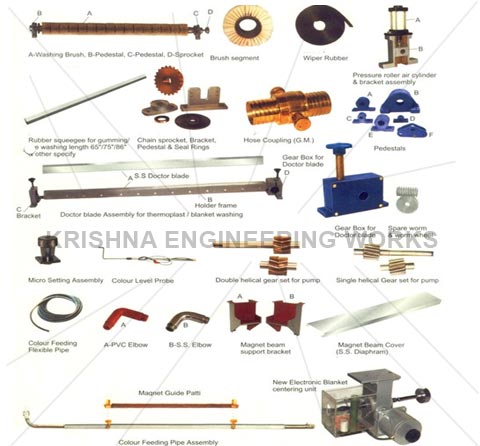

SPARES FOR ROTARY PRINTING MACHINE
(LAXMI TYPE)
1. WashingBrush Assembly
2. Brush Segment
3. Wiper Rubber
4. Pressure Roller Air Cylinder Assembly
5. Rubber Squeegee for Gumming
6. Chain Sprocket, Pedestals, Seal Rings
7. Hose Coupling
8. S.S. Doctor Blade
9. Gear Box For Doctor Blade
10. Spur Worm & Worm Wheel
11. Micro Setting Assemble
12. Color Level Probe
13. Double & Single Helical Gear set for Color pump.
14. Color Feeding Flexible Pipe
15. PVC & SS Elbow
16. Magnet Beam Support Bracket
17. Magnet Beam Cover
18. Color Feeding Pipe Assembly 72'' Length complete
19. Electronic Blanket Centering Unit.

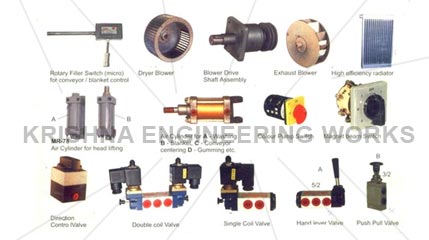

SPARES FOR ROTARY PRINTING MACHINE
(LAXMI TYPE)
1. Filler Switch for conveyor / Blanket control
2. Drier Blower Fan
3. Exhaust Blower Fan
4. High Efficiency Radiators,
5. Air Cylinder for head lifting.
6. Service Kit for Air Cylinder
7. Color Pump Switch
8. Magnet Beam Switch
9. Direction Control Valve
10. Key don Bearings ( All Repeats)

Spares For Stormac ( Stork ) Rotary Printing Machine Parts.

1. End Rings (Die Moulded Aluminium screen end ring) of all repeats.
2. Screen Drive Gear Box
3. Drive Box Screens, Last colour
4. Main Drive Box
5. Support Roller
6. Support Roller Last Colour
7. Screen Head Pump Side
8. Adjusting Block - Pump side (Screen Beam and Consol)
9. Adjusting Block - Drive Side (Bridge Assembly)
10. Screen Head- Drive Side 64 cms.
11. Squeegee suspension - pump side
12. Squeegee Suspension - Drive Side
13. Complete Assly. Squeegee
14. Colour pump. SB-4, SB-5.
15. Blanket Washer
16. Squeegee Blades (stainless steel) ( Imported )
     - 40 mm X 0.10 mm 40 mm X 0.15 mm
     - 40 mm X 0.20 mm 45 mm X 0.15 mm
     - 45 mm X 0.20 mm 50 mm X 0.15 mm
     - 55 mm X 0.20 mm
17. Automatic Printing Head
